Farmtrac 6075EN

Specialty Tractor - Power 74 Hp

Narrow. Powerful. Productive.

  • High-Performance Turbo Engine

    • 4-cylinder, 3680cc, 74 HP turbocharged engine
    • Stage V CRDI engine for cleaner emissions
    • DOC + DPF with EGR system
    • Max torque: 351 Nm
    • Motorized EGR & auto tensioner for reliability
    • Dry air cleaner with clogging sensor
    • Helical intake for better fuel-air blending
    • Fuel tank capacity: 70 liters

  • Versatile Carraro Transmission

    • Carraro gearbox: 12F+12R / 24F+24R
    • Synchromesh type for smooth shifting
    • Creeper gear: minimum speed 0.46 km/h for precision farming
    • Double clutch with independent PTO lever
    • Forward speed: max 33.38 km/h, min 0.46 km/h
    • Reverse speed: max 24.84 km/h, min 0.34 km/h
    • Epicyclic planetary reduction rear axle with differential lock

  • Heavy-Duty Hydraulic System

    • Hydraulic lift capacity: 2500 kg with external cylinder
    • Twin hydraulic pump: 50.4 LPM capacity
    • Position & draft control system
    • 3xDE/3xSE convertible auxiliary valve for implement compatibility
    • Leak-proof hydraulics for low maintenance and quick response
    • Hydraulic assisted oil-immersed brakes
    • Implement adjustment for quick, precise setup

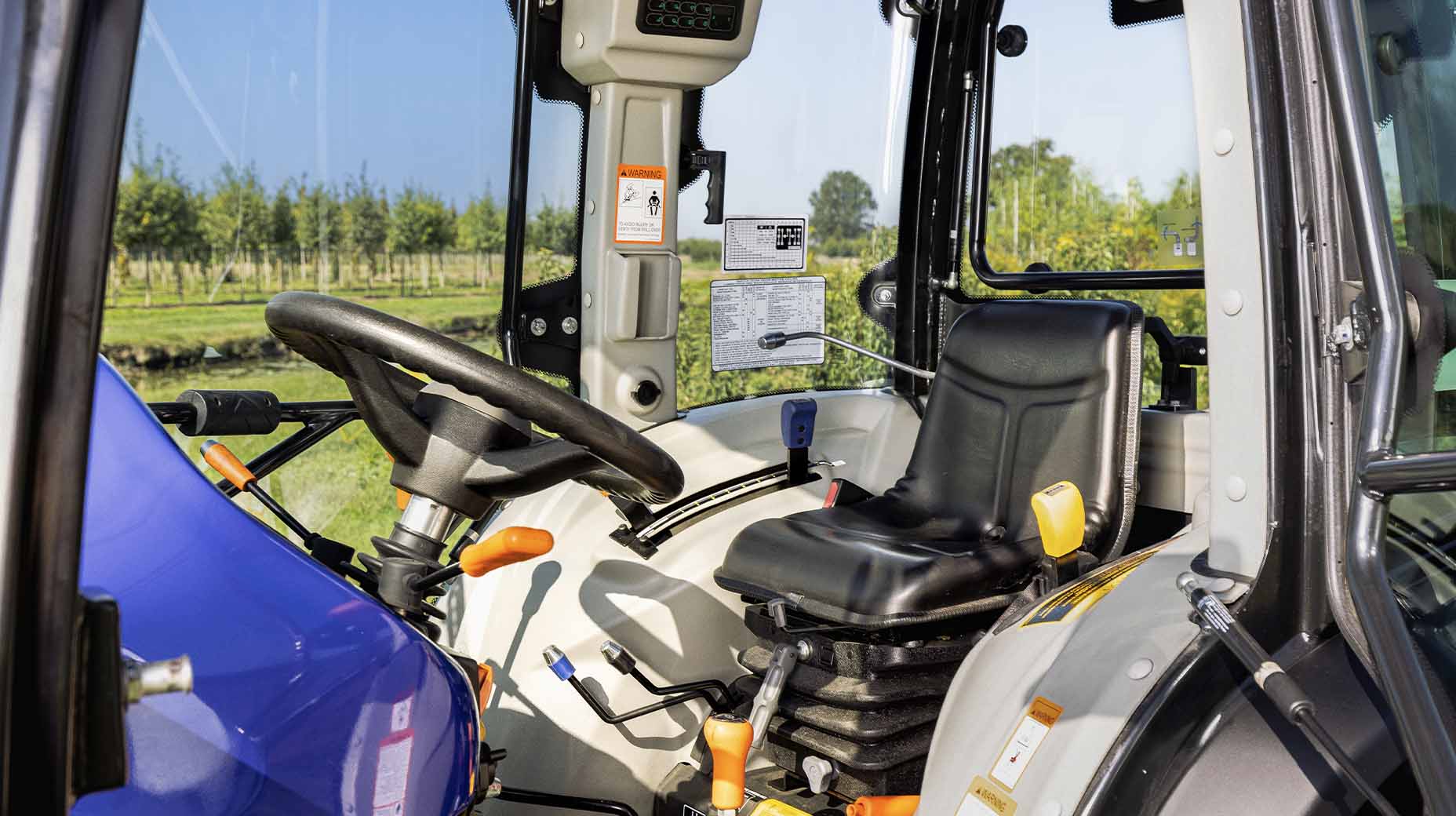

  • Ergonomic Workspace for Every Task

    • Recliner driver seat with arm/head rest & seat belt
    • Tiltable & telescopic steering
    • Wider platform for more leg space
    • Air conditioned cabin for optimal comfort
    • Modern instrument cluster for intuitive control
    • Spacious flat platform for all-day comfort
    • Premium styling with projector lamp

  • Narrow & Maneuverable 4WD

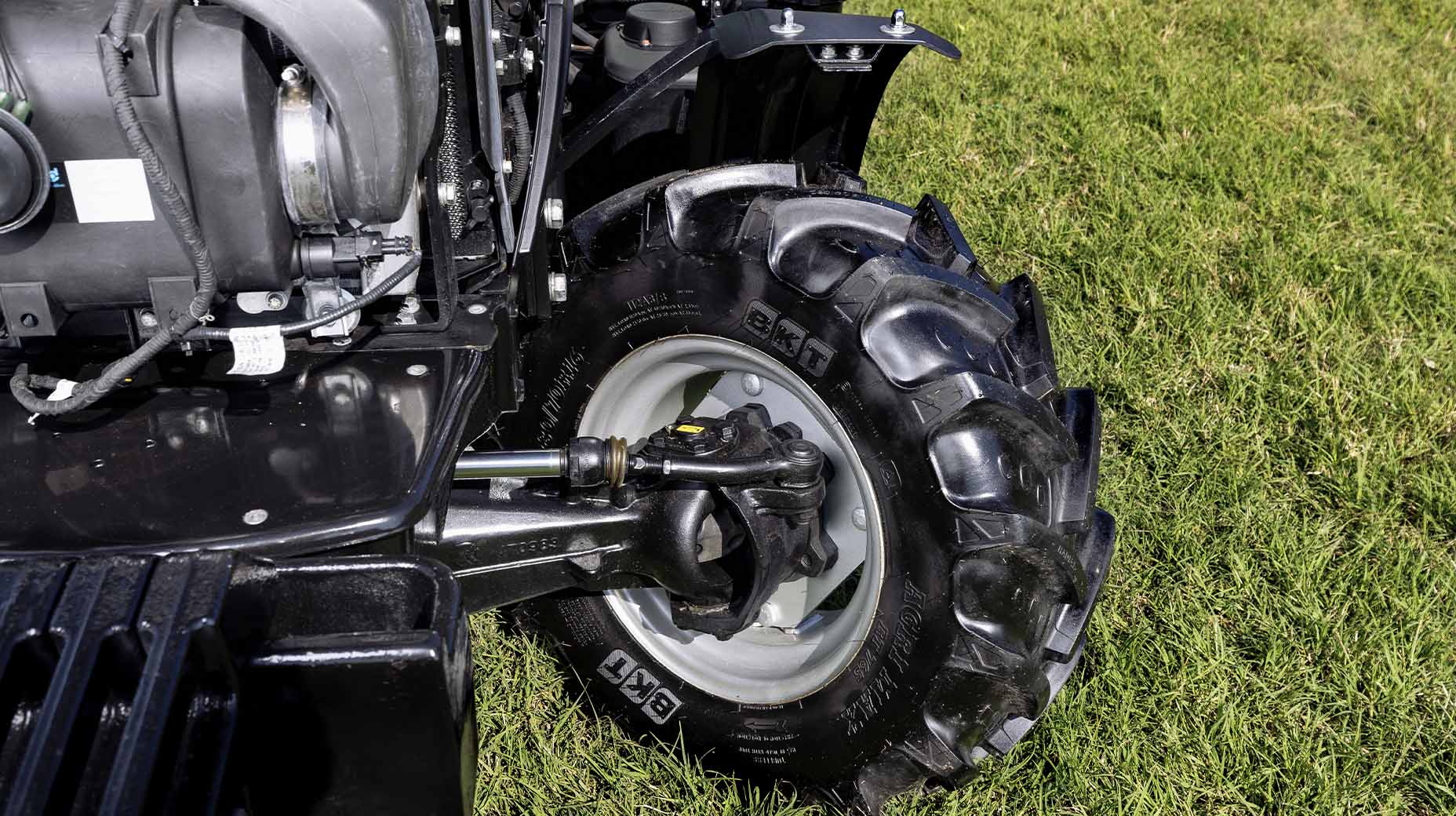

    • 4WD front axle with rotatable front fender
    • Wheelbase: 2157 mm
    • Front tyre: 280/70 R16 (Radial)
    • Rear tyre: 380/70 R24 (Radial)
    • Tractor weight: 3150 kg
    • Swinging drawbar for versatility
    • Front ballast: 80 kg + 6 x 22 kg weights
    • Front and rear work lights
    • Safety start switches (clutch, PTO, gear)
    • Engine shut-off key, battery cut-off switch, beacon lamp
